How Does Brownie’s THIRD LUNG™ Enhance Your Diving and Boating Experience?
The era of traditional dive gear cluttering the deck of your boat has been replaced by the simplicity of
our hidden compressor. A simple flip of a switch will have you diving at a moments notice, thus
creating the ultimate experience in luxury and Diving Made Easy.
our hidden compressor. A simple flip of a switch will have you diving at a moments notice, thus
creating the ultimate experience in luxury and Diving Made Easy.

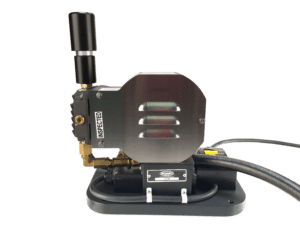

[ultimate_heading main_heading=”The BOS 1″ main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]

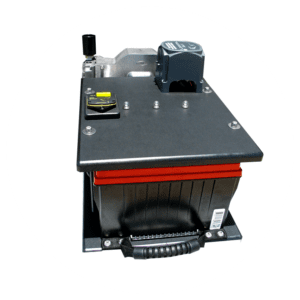

For proper weight distribution and ease of placement, Motor/Compressor and Battery modules are individually mounted on King Starboard with pre-drilled holes. Modules snap together with Anderson fittings.
[ultimate_heading main_heading=”The BOS 1: Key Features” main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]
[info_list icon_color=”#0f8693″ font_size_icon=”24″ eg_br_width=”1″][info_list_item list_title=”Motor”]All BIAS systems begin with breathing air quality and spark-free, sealed, marine quality variable speed motors and controllers.[/info_list_item][info_list_item list_title=”Compressor”]Single Head Direct Drive compressor and sealed Stainless Steel Compressor Bearings with Breathing-Air/Oxygen compatible grease is the hallmark of our proprietary diver-specific compressor. The complete main bearing and eccentric crank assembly are machined from high-quality stainless steel. Even our reed-valves are made in America by a very precise etching method and are pure high-grade stainless.[/info_list_item][info_list_item list_title=”Power”]Battery for this package is NOT provided. A 24 v battery source is required to operate the compressor.[/info_list_item][info_list_item list_title=”Performance”]2 divers to 65’, 3 divers to 35’[/info_list_item][info_list_item list_title=”Run Time”]Run time determined by your battery selection.[/info_list_item][info_list_item list_title=”Weight & Dimensions”]24 LB – Compressor 13″ L x 9″ W x 15.5 “H[/info_list_item][/info_list]

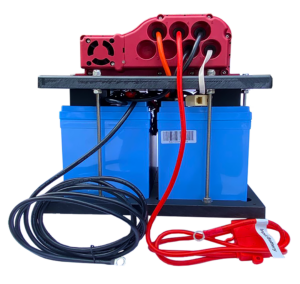

[ultimate_heading main_heading=”The BOS 2″ main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]
For proper weight distribution and ease of placement, Motor/Compressor and Battery modules are individually mounted on King Starboard with pre-drilled holes. Modules snap together with Anderson fittings.
[ultimate_heading main_heading=”The BOS 2: Key Features” main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]
[info_list icon_color=”#0f8693″ font_size_icon=”24″ eg_br_width=”1″][info_list_item list_title=”Motor”]All BIAS systems begin with air quality and spark-free, sealed, marine quality variable speed motors and controllers.[/info_list_item][info_list_item list_title=”Compressor”]Single head Direct Drive compressor and stainless Steel Compressor Bearings with Breathing-Air/Oxygen compatible grease is the hallmark of our proprietary diver-specific compressor. The complete main bearing and eccentric crank assembly are machined from high-quality stainless steel. Even our reed-valves are made in America by a very precise etching method and are pure high-grade stainless.[/info_list_item][info_list_item list_title=”Power”]Battery pack included. (2 ea) 12v RELION Lithium Iron Phosphate batteries with a waterproof (IP68) high efficiency DC/DC charging system that takes 12v input and charges the 24v battery pack module.[/info_list_item][info_list_item list_title=”Performance”]2 divers to 65’, 3 divers to 35’[/info_list_item][info_list_item list_title=”Run Time”]2-3 hours fully charged[/info_list_item][info_list_item list_title=”Weight & Dimensions”]Compressor 13L x 9W x 15.5H – 24 LB; Battery Pack: 12.5L x 10.5W x 11.5H – 35 LB[/info_list_item][/info_list]
[ultimate_heading main_heading=”The BOS 3″ main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]
For the longer dive, The BOS 3 operates off of (2) Odyssey PC1500 batteries and recharges in approximately 6 hours off of the boats power source. Modular components allow for easy placement and even weight distribution throughout your vessel.
[ultimate_heading main_heading=”The BOS 3: Key Features” main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]
[info_list icon_color=”#0f8693″ font_size_icon=”24″ eg_br_width=”1″][info_list_item list_title=”Motor”]All BIAS systems begin with breathing air quality and spark-free, sealed, marine quality variable speed motors and controllers.[/info_list_item][info_list_item list_title=”Compressor”]Single head Direct Drive compressor and sealed stainless Steel Compressor Bearings with Breathing-Air/Oxygen compatible grease is the hallmark of our proprietary diver-specific compressor. The complete main bearing and eccentric crank assembly are machined from high-quality stainless steel. Even our reed-valves are made in America by a very precise etching method and are pure high-grade stainless.[/info_list_item][info_list_item list_title=”Power”]Battery pack included. (2 each) 12v ODYSSEY PC1500 batteries with a waterproof (IP68) high efficiency DC/DC charging system that takes 12v input and charges the 24v battery pack module.[/info_list_item][info_list_item list_title=”Performance”]2 divers to 65’, 3 divers to 35’[/info_list_item][info_list_item list_title=”Run Time”]3.5-4 hours fully charged.[/info_list_item][info_list_item list_title=”Weight & Dimensions”]Compressor 13″ L x 9″ W x 15.5″ H – 24 LB; Battery Pack 17″ x 14″ x 17″ -48 LB[/info_list_item][/info_list]
[ultimate_heading main_heading=”Continuous Power” main_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;” el_class=”whiteme”][/ultimate_heading]
AC – 110 / 220 AND 60 / 50 Hz Available

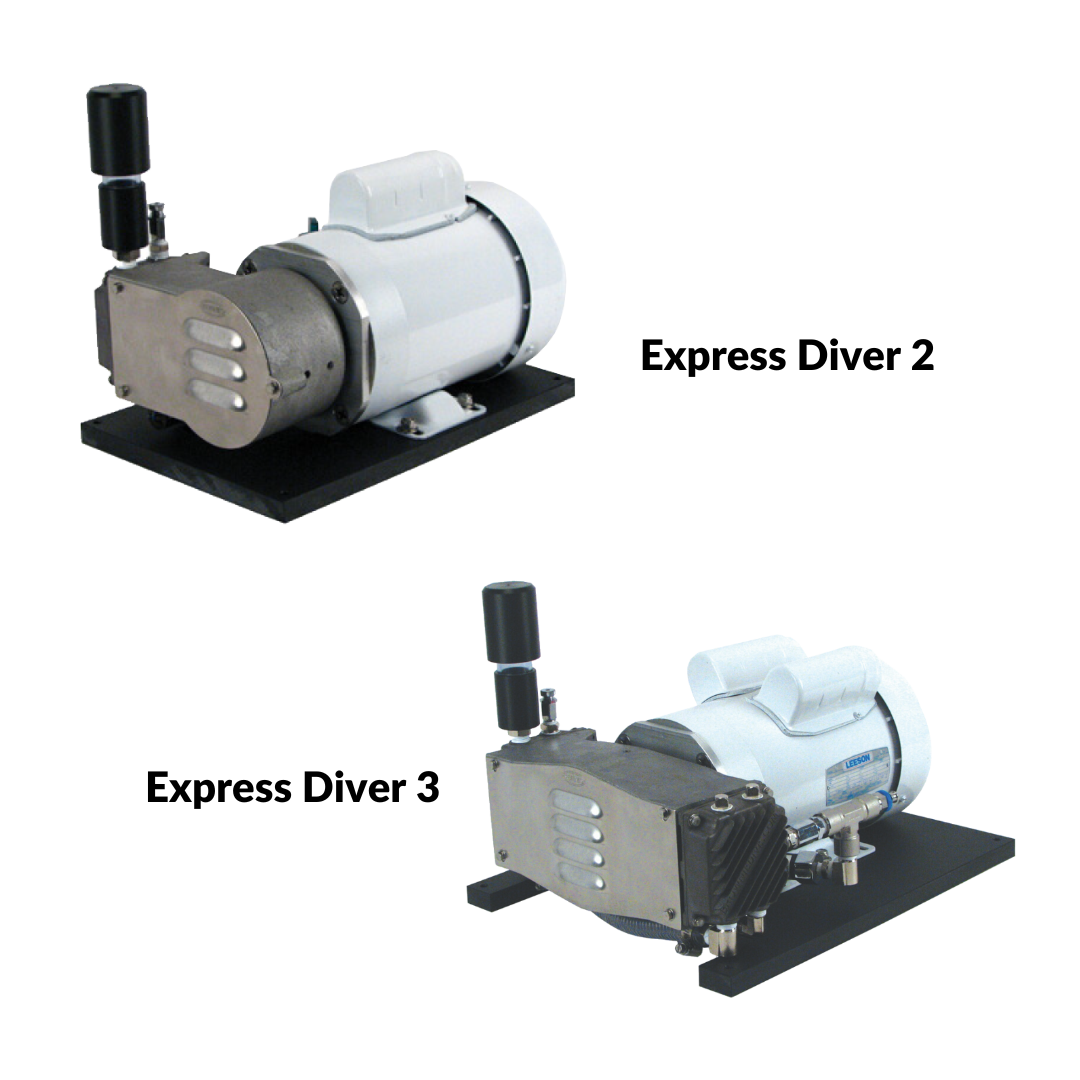

The Express Diver 2 & 3’s motor/compressor is mounted on a King starboard base with pre-drilled holes for an easy installation. Comes with 2.5 gal aluminum accumulator tank which ensures your divers have a full, effortless breathe of air every time even if drawing air at the exact time as their other fellow divers. All of the components connect easily together with our patented QRS fittings.
OEM: CAD Drawings available upon request. Please send us an email request.
[ultimate_heading main_heading=”BIAS System Layout” main_heading_color=”#ffffff” sub_heading_font_size=”desktop:20px;” sub_heading_line_height=”desktop:34px;” main_heading_font_family=”font_family:|font_call:” sub_heading_style=”font-style:italic;” sub_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;”][/ultimate_heading]
[ultimate_heading main_heading=”Finishing Touches” main_heading_color=”#ffffff” sub_heading_color=”#ffffff” sub_heading_font_size=”desktop:20px;” sub_heading_line_height=”desktop:34px;” main_heading_font_family=”font_family:|font_call:” sub_heading_style=”font-style:italic;” sub_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;”]Every Built In Air System Should Have[/ultimate_heading]

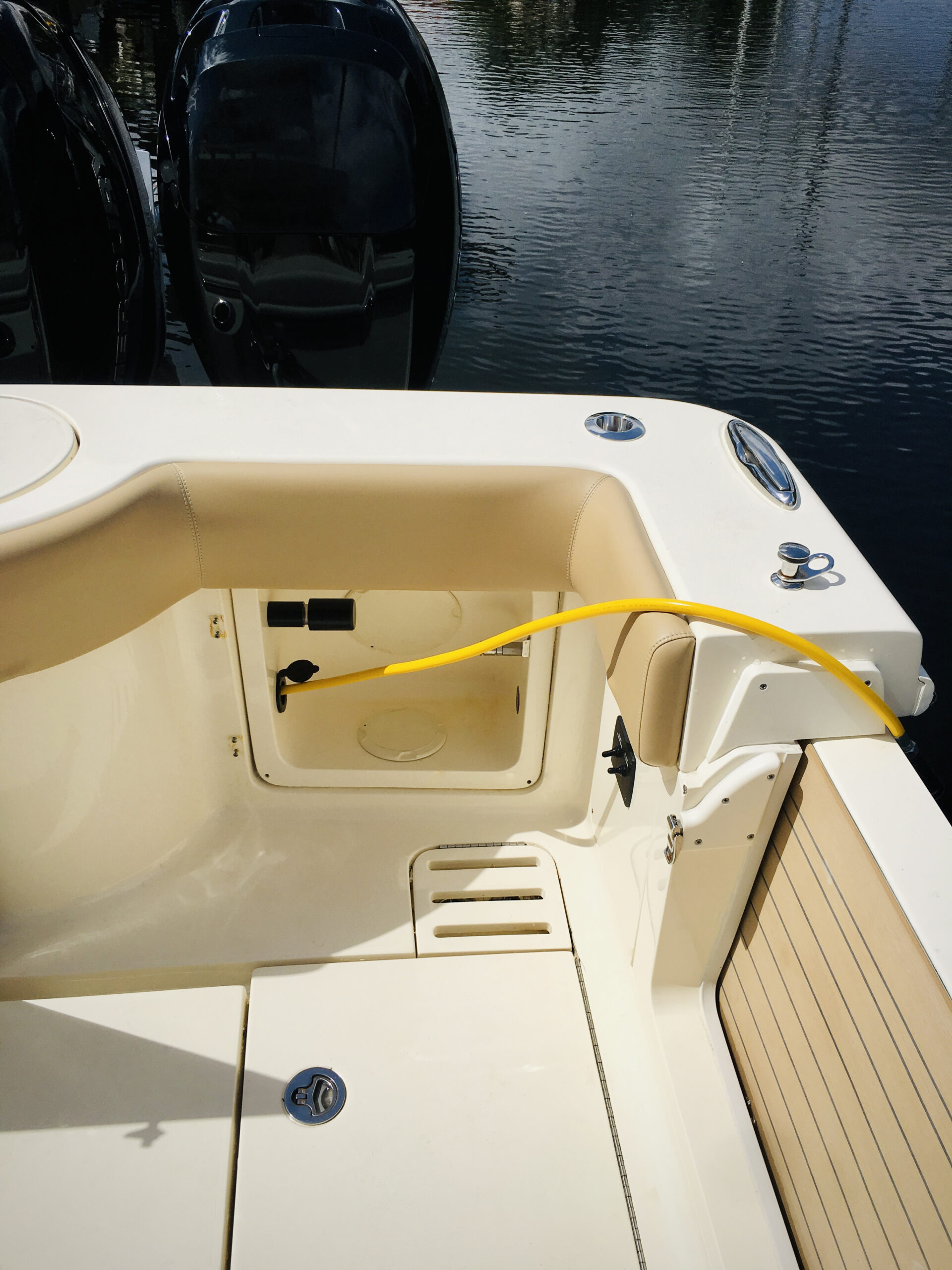

Thru Hull Outlet – Basic

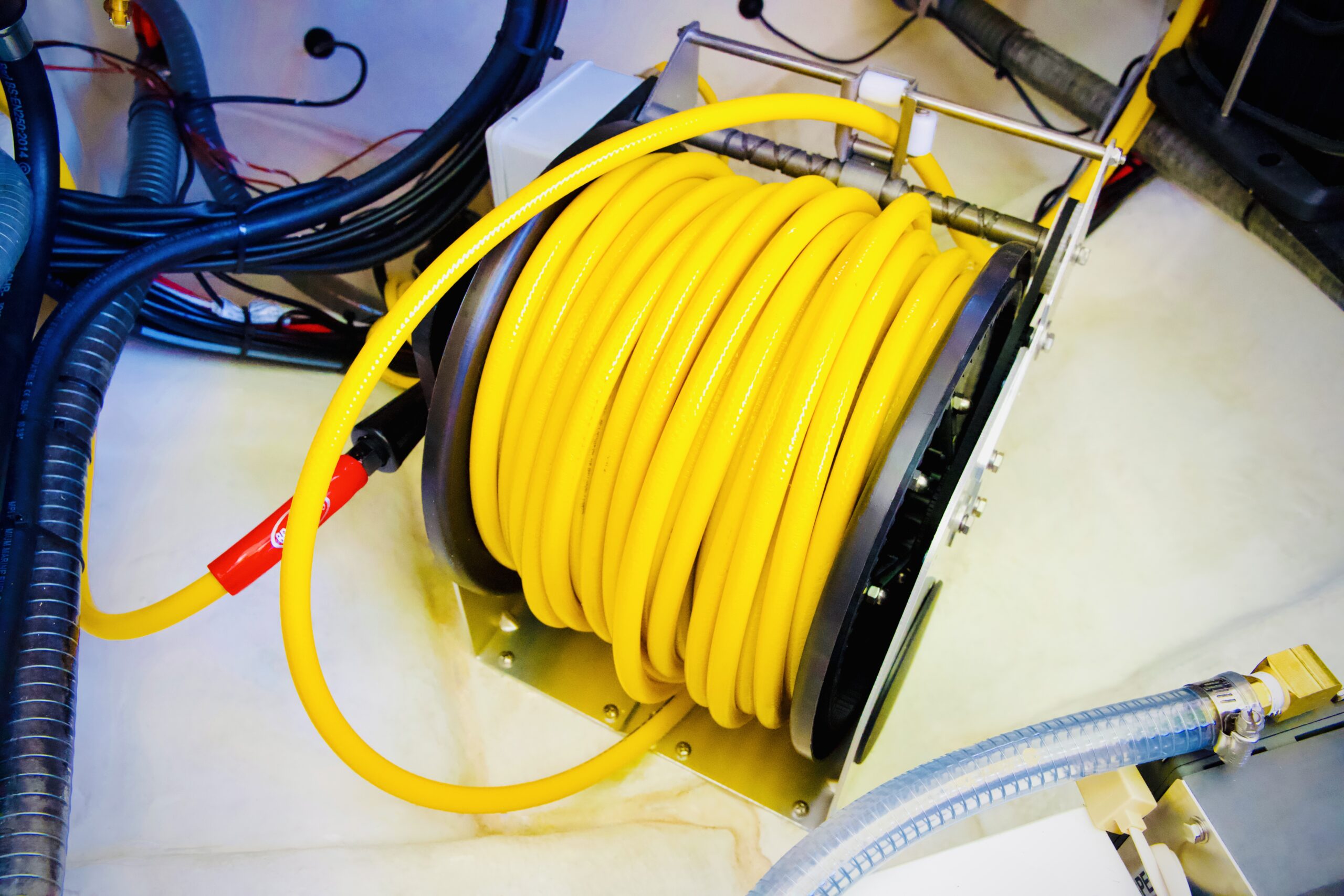

Level Winding E-Reel

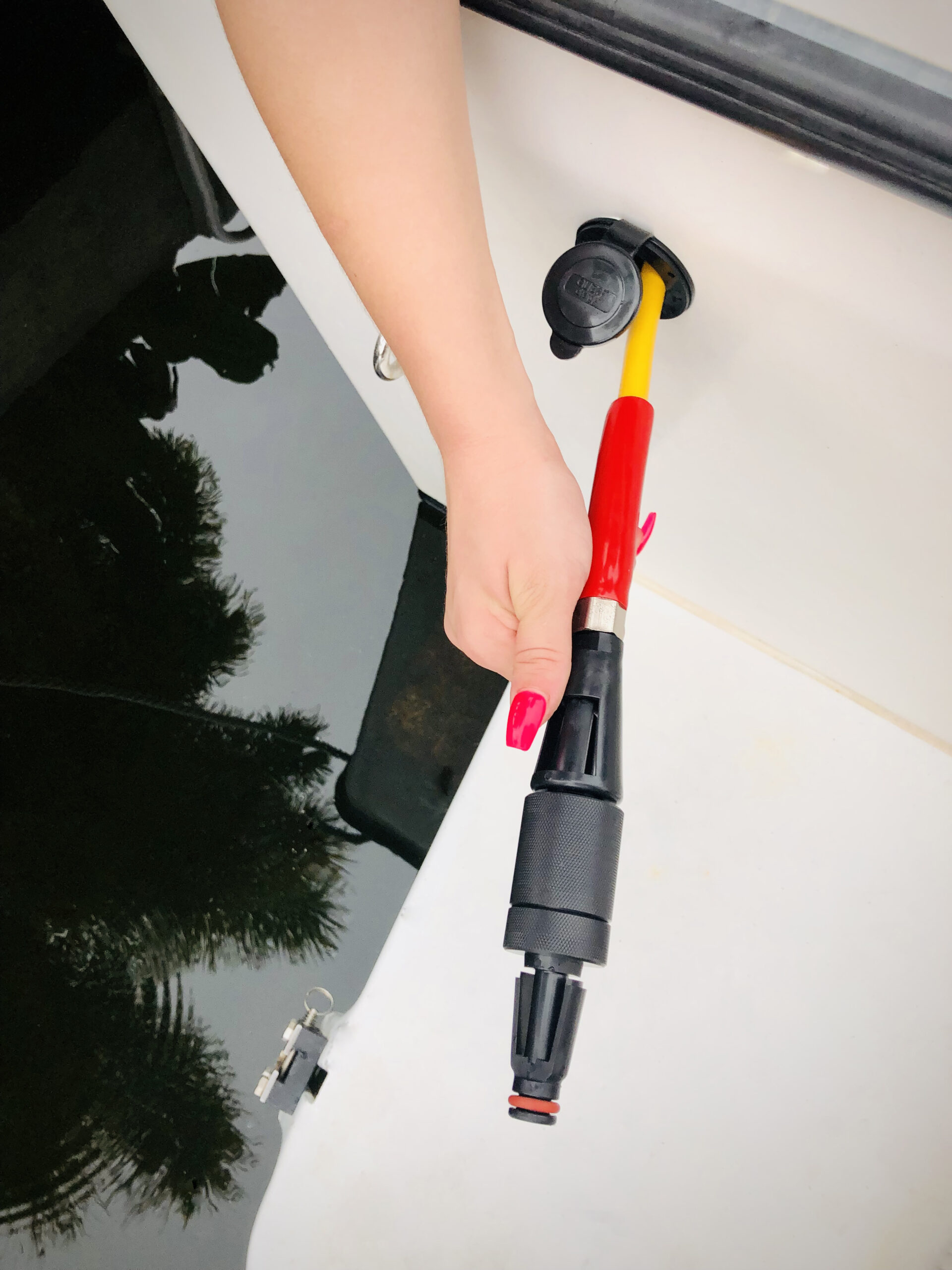

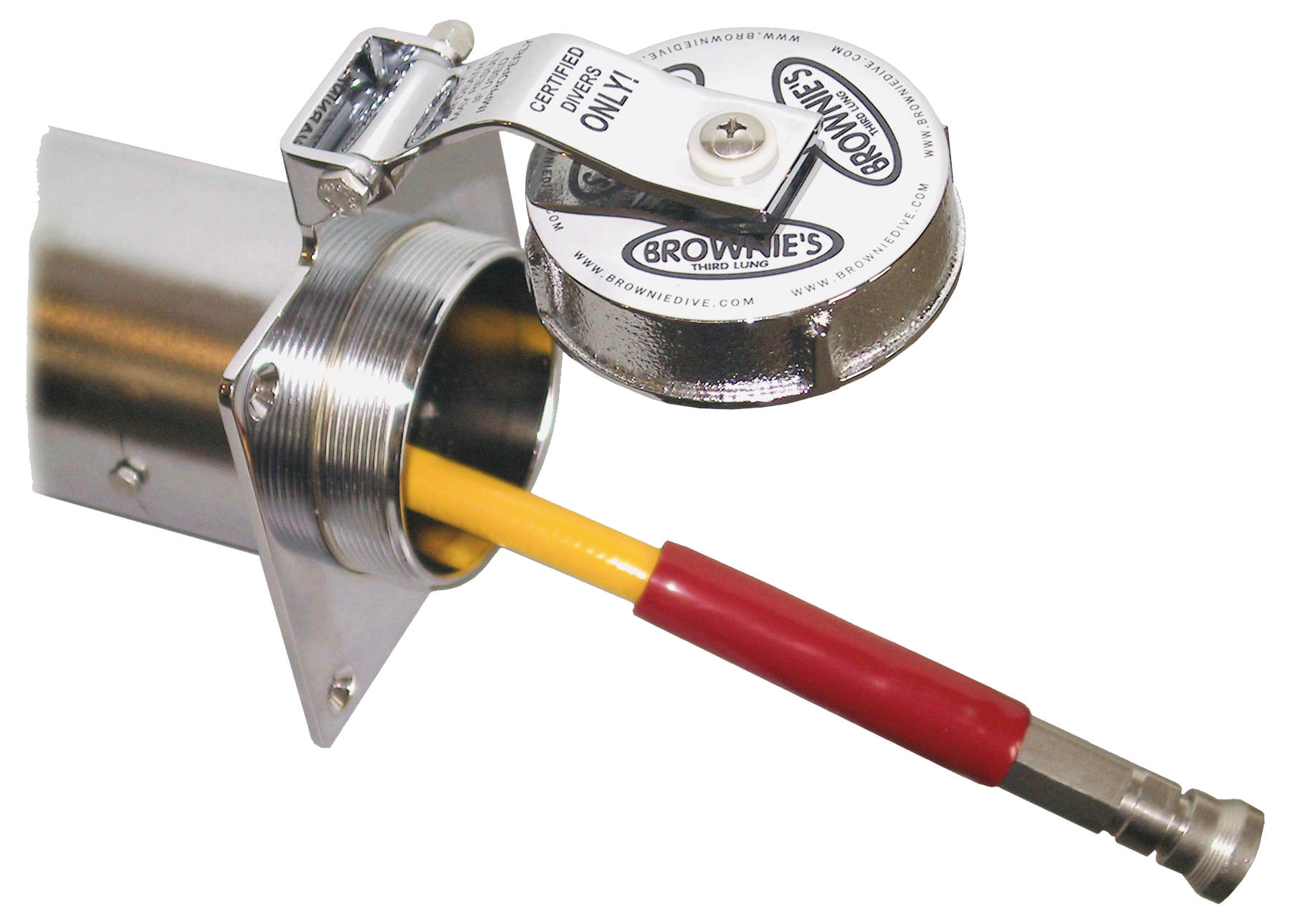

SS Hawse
[ultimate_heading main_heading=”Fresh Air Intake” main_heading_color=”#ffffff” sub_heading_color=”#ffffff” sub_heading_font_size=”desktop:20px;” sub_heading_line_height=”desktop:34px;” main_heading_font_family=”font_family:|font_call:” sub_heading_style=”font-style:italic;” sub_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;”]Keep your compressor quietly and neatly tucked away while drawing fresh air from the surface or an air conditioned cabin. Below are your options.[/ultimate_heading]
Fresh Air Intake
Keep your compressor quietly and neatly tucked away while drawing fresh air from the surface or an air conditioned cabin. Below are your options.

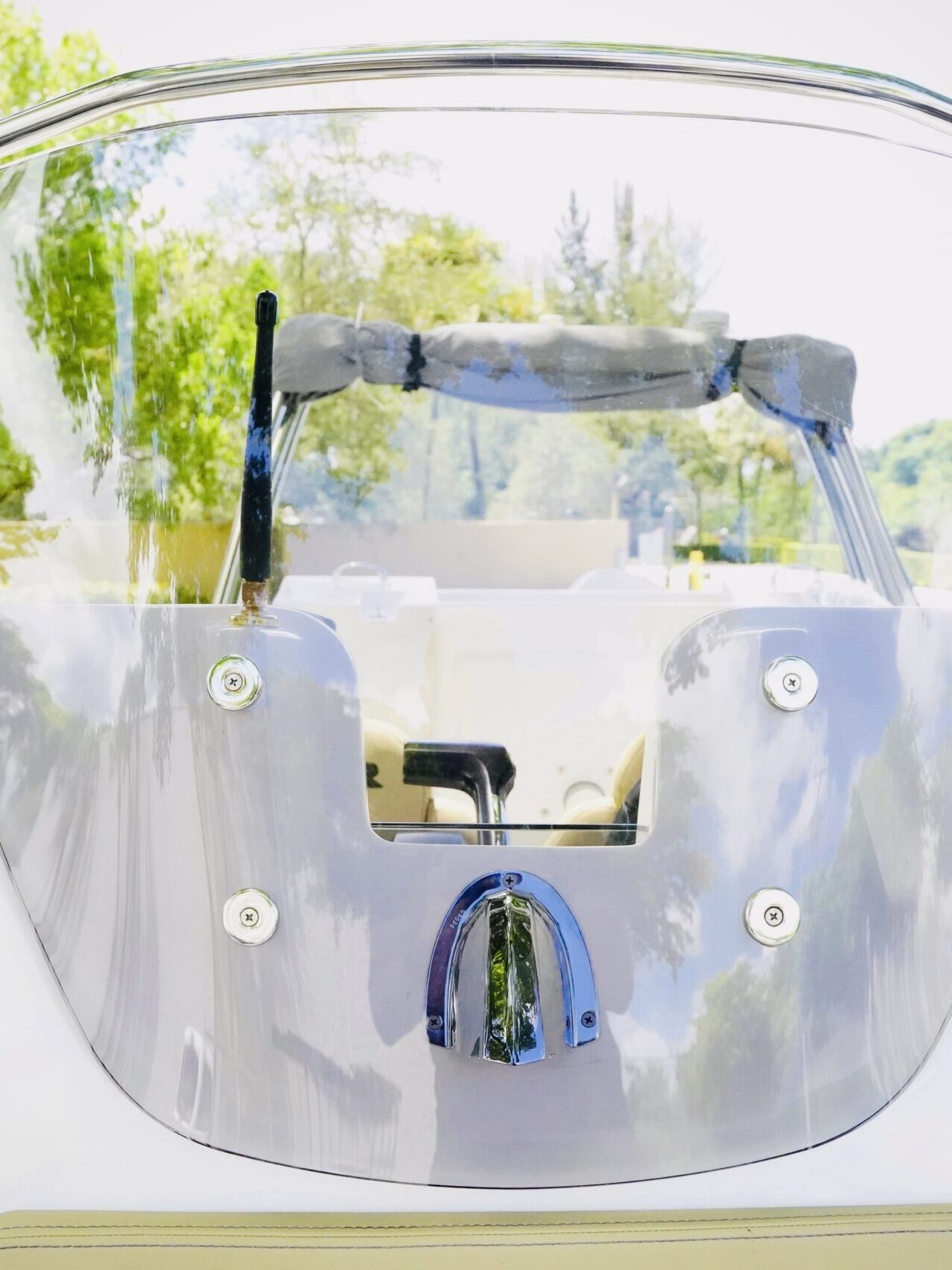

Fresh Air Intake – Clam Shell

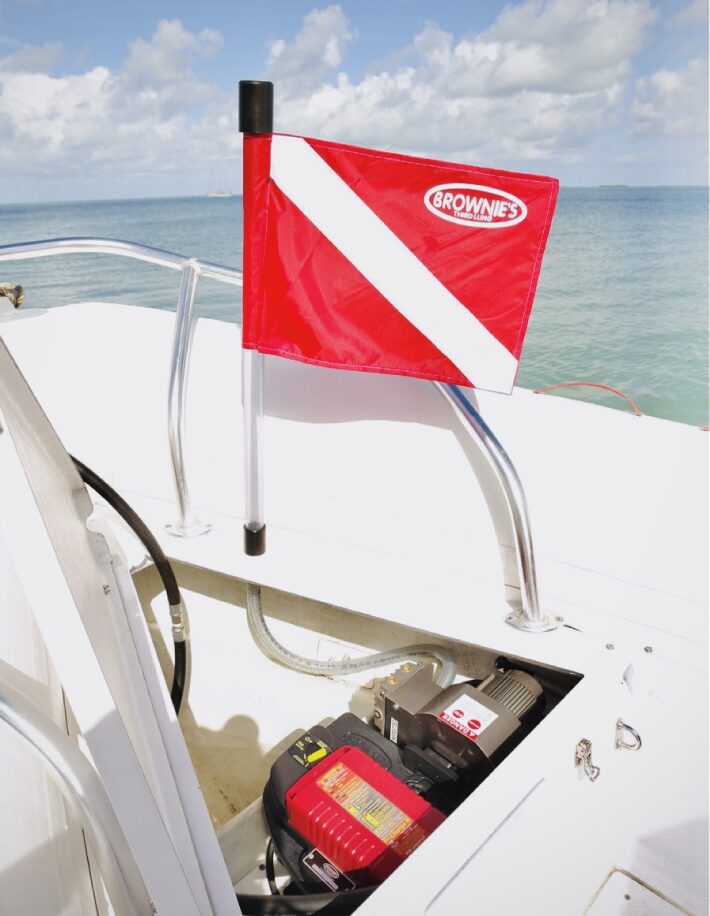

Fresh Air Intake – Socket with Dive Flag
Fresh Air Intake – Socket
[ultimate_heading main_heading=”New Build or Refit Support” main_heading_color=”#ffffff” sub_heading_color=”#ffffff” sub_heading_font_size=”desktop:20px;” sub_heading_line_height=”desktop:34px;” main_heading_font_family=”font_family:|font_call:” sub_heading_style=”font-style:italic;” sub_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;”][/ultimate_heading]
From the conception of a new boat to a refit of a “new to you” boat, Brownie’s THIRD LUNG™ can help achieve your dream dive boat.
Our support includes:
- CAD Foundation plans available for each system.
- Our Brownie’s THIRD LUNG™ engineers will work directly with your boat builder to ensure desired placement of components are secured.
Customized configurations specific to your boats design. - Create your own personalized “Dive Boat.”
- Add value to your boat with specialized OEM equipment.
- Manufacturer Warranty.
[ultimate_heading main_heading=”B.I.A.S. Foundation Plan” main_heading_color=”#ffffff” sub_heading_color=”#ffffff” sub_heading_font_size=”desktop:20px;” sub_heading_line_height=”desktop:34px;” main_heading_font_family=”font_family:|font_call:” sub_heading_style=”font-style:italic;” sub_heading_font_family=”font_family:|font_call:” main_heading_margin=”margin-bottom:30px;”][/ultimate_heading]

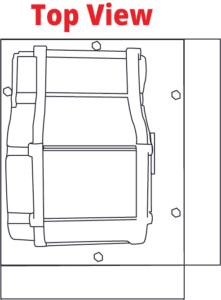

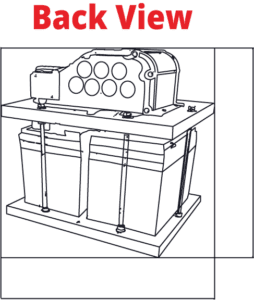

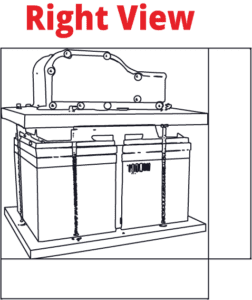

B.I.A.S. Foundation Plan

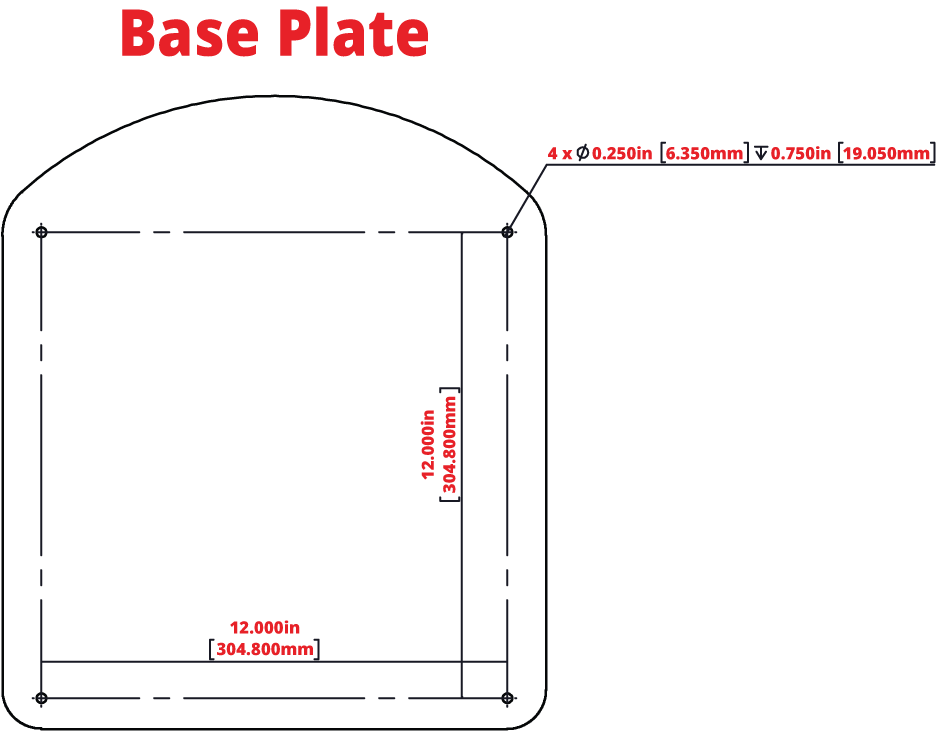

Mounting Base Plate
The system comes with a 0.75” King Starboard TM base plate with 4 pre-drilled mounting holes.
Use the 4 pre-drilled holes in the base plate to securely mount the unit.
The unit should not be operated if each bolt is not properly fastened to the vessel.
1⁄4 – 20 Machine Screw Recommended
Mounting Location
The installation area should be dry and well ventilated. If breathable air is not available while the compressor is running, Brownie’s recommends running a fresh air intake to a clean air source.
Electrical Wiring
The unit has a Red (+) and Black (-) cable coming from the Sterling Battery to Battery charger. The person installing the unit must connect these wires directly to the boats house batteries. The unit also has a smaller black and yellow cable used for the optional explanation of both systems can be found in the user manual.
Adding cable:
Less than 5ft – 4 Gauge
Greater than 5ft – 2 Gauge
